Graphic
Detail

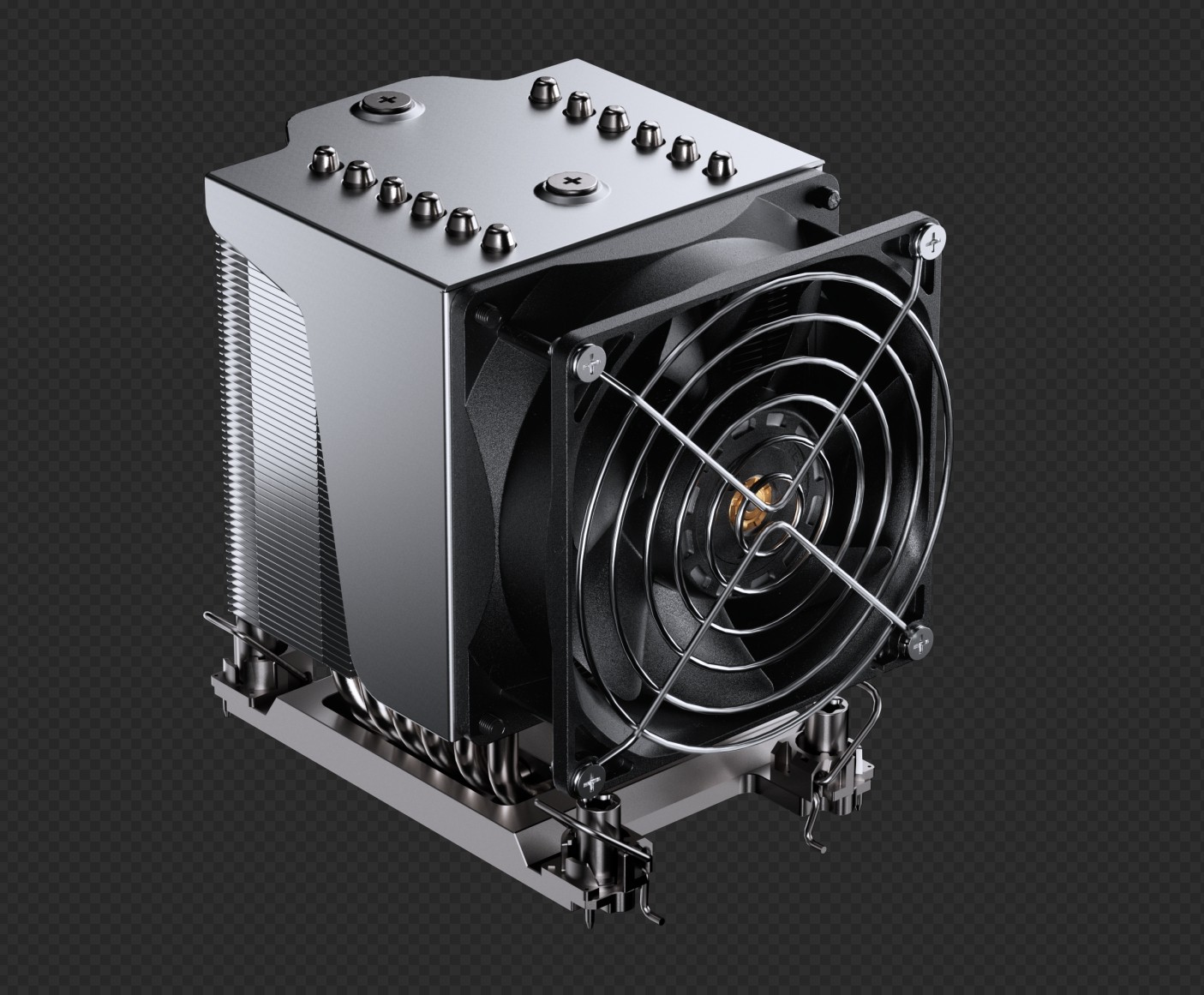

4U-T6

Product Detail

Our new server air cooler is designed to address one of the key pain points faced by server customers.

When system integrators place orders for server platforms such as Intel LGA4677 / 4189 / 3647 or AMD SP3 / SP5 / SP7, each platform typically requires a different mounting base and bracket set. This often leads to complex inventory management and scattered orders across multiple product SKUs.

To solve this, we developed a modular, detachable base design that allows a single cooler body to support multiple platforms. For example, instead of ordering 100 units for each of six platforms, customers can now directly order 600 universal cooler bodies and simply install the required base according to their platform needs.

This modular approach gives customers greater flexibility in material preparation and inventory control. At the same time, it allows the factory to consolidate production volumes, reduce per-unit costs, and achieve higher overall efficiency — delivering mutual benefits for both sides.

TDP 350W

CPU Socket Intel LGA:3647/4189/4677

AMD : SP3/SP5/SP7

Product Dimension Intel LGA 3647 100.6*124*125.5mm

Intel LGA 4189 113*124*125.5mm

Intel LGA 4677 118*124*125.5mm

Intel SP3 118*124*125.5mm

Intel SP5 118*124.5*125.5mm

Intel SP7

Fin Thickness 0.3mm

Net Weight Intel LGA 3647 850±10g

Intel LGA 4189 805±10g
